Materials

Galvanized Steel

All of our materials used are 100% galvanized
  • 14 gauge (.o75 inches) have a 10 Year Limited Warranty
  • 12 gauge (.105 inches) have a 20 Year Limited Warranty

Baserail

The baserail is the foundation of the building, each welded sleeve is approximately 4ft apart center to center. Longest single baserail that we manufacture is 25 feet long.

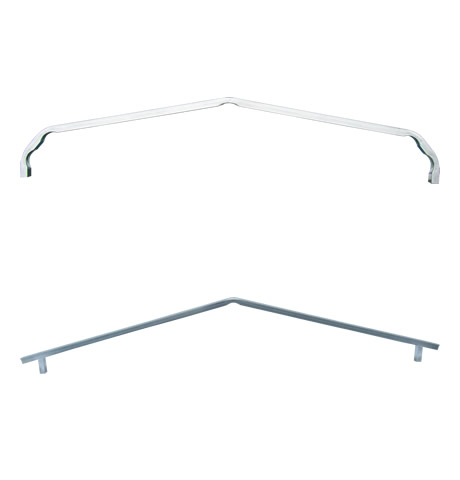

Trusses/Bows

Vary from sizes of 12 feet wide up to 60 feet wide.

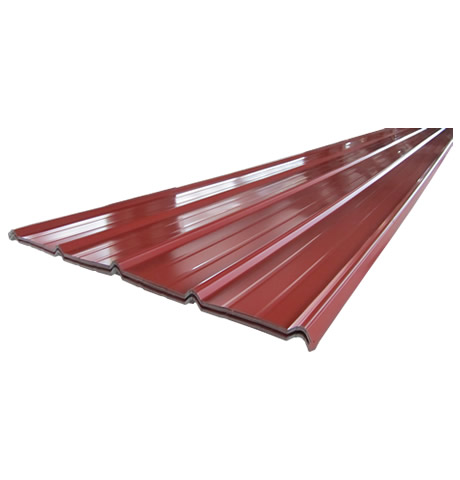

Sheet Panels

They are 29 gauge in thickness. Our longest single panel is 31' long.

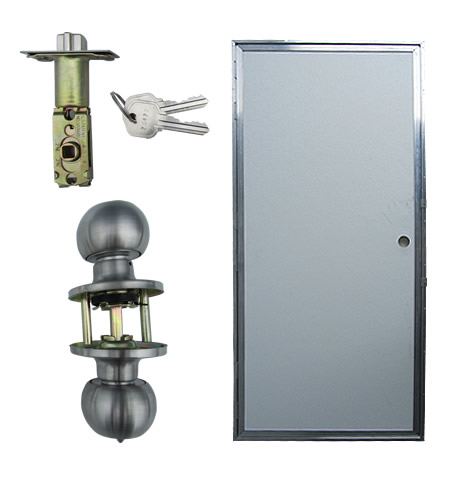

Walk-in Doors

34" width and 72" height

Windows

30" width x 30" height

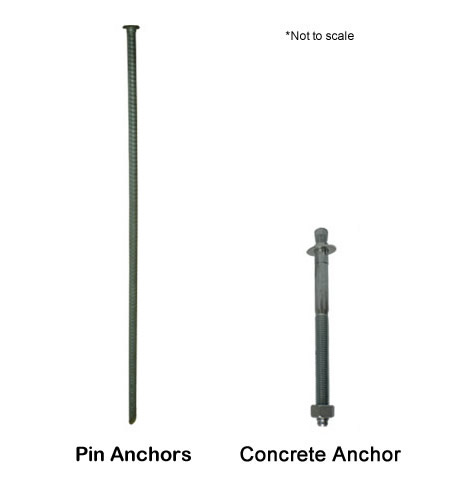

Standard Anchors

All buildings anchored to ground come with pin anchors unless building is being anchored down on concrete.

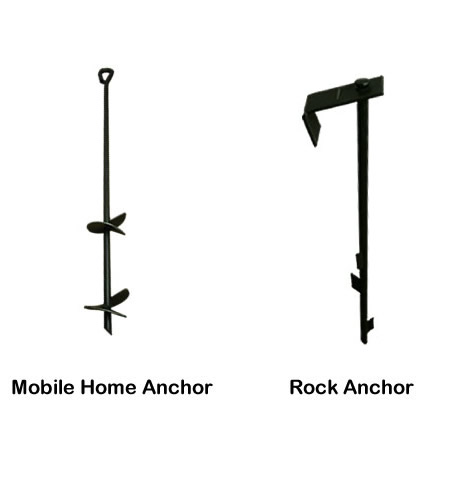

Additional Anchoring

These are used for additional anchoring when needed.

Braces

These 18 gauge braces are used for center bracing and corner bracing.

Purlins / Hat Channels

Frame piece on A-frame Vertical roof that runs horizontal so sheet panels can be attached.

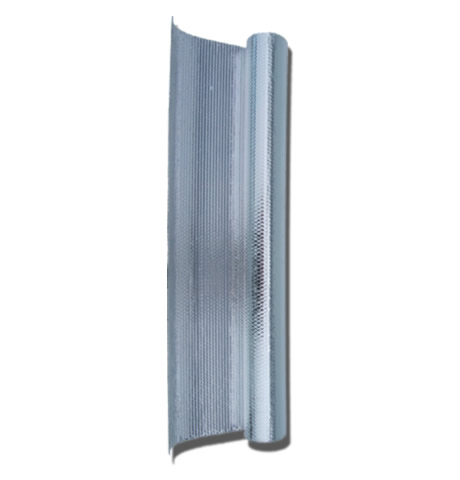

Vapor Barrier

Used to reduce condensation on roof.

Roll-up Door

We offer sizes starting at 6' x 7' up to 14' x 14'.

J Trim

Used to trim out windows and walk-in doors.

L Trim

Used to trim out roll-up doors and edges of sheet panels for horizontal roofs/sides.

Ridgecap Trim

Used for the peak of an A-frame Vertical where sheet panels meet.

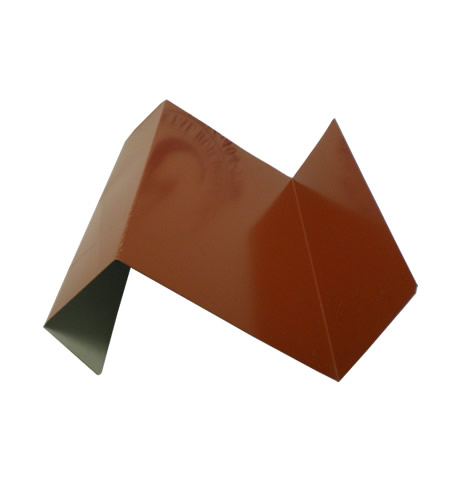

Boxed Eve

Used to cover truss overhang on A-frame styles where roof and side panels meet.
